The Unseen Hero of Modern Medicine: How a Tiny Ring Makes Minimally Invasive Surgery Possible
A small component, often no longer than 3 millimeters, plays a crucial role in over 600 million catheter-based, endoscopic, and implant procedures each year: the radiopaque marker band. This tiny ring acts as a miniature lighthouse, allowing doctors to see and precisely guide medical instruments within the body during procedures using fluoroscopy, CT, or MRI.
In the high-stakes world of modern medicine, precision is everything. Whether a surgeon is navigating the delicate blood vessels of the heart, deploying a life-saving stent, or placing a catheter to deliver targeted medication, clear visibility is essential for safe and effective procedures. At the core of this visual guidance is the marker band, a simple yet indispensable component. These small, radiopaque rings are the unsung heroes of interventional medicine, transforming medical devices from blind instruments into visible, trackable tools under imaging.
Why Visibility is Critical
Many critical medical procedures are performed “percutaneously,” meaning through the skin. This approach means physicians cannot directly see the device inside the body. Instead, they rely on real-time imaging technologies, primarily X-ray fluoroscopy. While these systems provide a live video of the patient’s anatomy, standard device materials like polymers and stainless steel are nearly invisible to X-rays. This is where marker bands become essential.

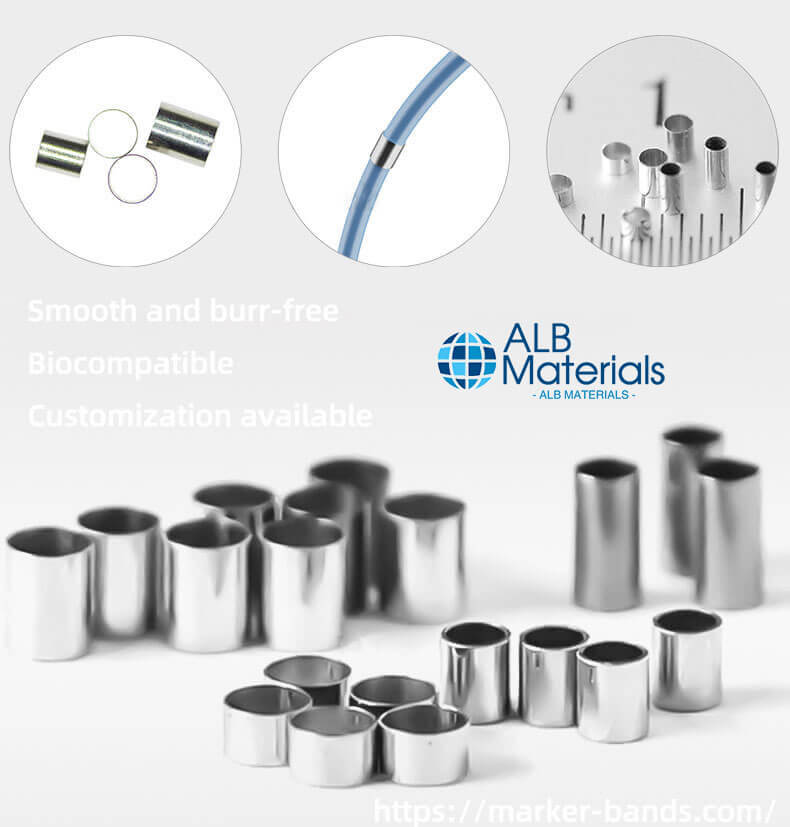

Marker bands are small, cylindrical components made from materials with a high density and atomic number, which allows them to effectively absorb X-rays. When attached to a device, they appear as sharp, bright markers on the fluoroscopic screen, offering a clear reference point against the body’s tissues.
The Science of Seeing the Unseen: Radiopacity
The key feature of a marker band is its radiopacity—the ability to block the passage of X-rays and create a distinct shadow on an imaging detector. Common materials used to achieve this include:
- Platinum-Iridium (Pt-Ir) Alloy: Considered a gold standard for its excellent radiopacity, biocompatibility, and durability.
- Tantalum (Ta): Known for its exceptional visibility and biocompatibility.
- Gold (Au): Offers high radiopacity but is softer and often used as a plating.
- Tungsten (W): Very dense and cost-effective, but it can be brittle and is generally avoided in certain long-term implants due to potential corrosion.
These materials are precisely manufactured into micro-tubes or rings and then securely attached to devices like catheters, guidewires, and stents at strategic points.
Key Applications and Clinical Benefits
The use of marker bands provides critical advantages across a wide range of medical specialties:
1. Interventional Cardiology and Radiology:
- Balloon Angioplasty Catheters: Markers on both ends of the balloon ensure it is positioned correctly across a narrowed artery before inflation.
- Stent Delivery Systems: Markers show the exact location of the stent before it is deployed, preventing misplacement.
- Embolization Coils: A marker at each end helps the physician confirm the coil has been delivered to the correct aneurysm or blood vessel.
2. Electrophysiology:
- Ablation Catheters: Markers at the tip help to precisely position the catheter against heart tissue to correct abnormal electrical pathways that cause arrhythmias.
3. Neurology:
- Neurovascular Catheters: In delicate procedures such as removing blood clots from the brain, markers provide the visual feedback needed to safely navigate the brain’s winding blood vessels.
4. Gastroenterology and Pulmonology:
- Biopsy Forceps and Brushes: A marker indicates the location of the sampling tip, ensuring that tissue is taken from the correct lesion under X-ray guidance.
The primary clinical benefits of using marker bands include:
- Enhanced Procedural Accuracy: Precise placement of devices leads to better outcomes, such as optimal stent expansion or a complete tumor biopsy.
- Improved Patient Safety: Shorter procedure times result in less radiation exposure for both the patient and medical staff. Accurate placement also minimizes the risk of complications like vessel damage.
- Increased Procedural Efficiency: Physicians can navigate and deploy devices with greater confidence and speed, streamlining the entire operation.
Design and Manufacturing Considerations
A marker band’s effectiveness depends not just on its material but also on how it is integrated into the medical device. Key considerations include:
- Secure Attachment: Bands must be securely crimped, swaged, or bonded to the device to prevent them from dislodging and creating a hazardous embolism.
- Profile and Smoothness: The band should not significantly increase the device’s diameter or create a rough surface that could damage blood vessels.
- Biocompatibility and Durability: The material must be non-toxic, non-corrosive, and maintain its integrity for the duration of the procedure, whether it is a short-term diagnostic tool or a long-term implant.
The Future of Marker Bands
As medical devices become smaller and more complex, marker band technology will continue to advance. Future trends include:
- Advanced Composites and Coatings: The development of new alloys and radiopaque polymer coatings to reduce costs while maintaining high performance.
- Integrated Shape-Coding: Using bands of different shapes or patterns to identify different parts of a device, providing even more intuitive visual information to the surgeon.
- Compatibility with Advanced Imaging: Ensuring markers are clearly visible not only with fluoroscopy but also with emerging imaging technologies like Cone-Beam CT (CBCT).
Conclusion
Though small, marker bands play a massive role in the success of minimally invasive procedures. They are a fundamental technology that bridges the gap between a physician’s need for visibility and the physical limitations of the human body. By making invisible devices visible, these tiny metal bands empower clinicians to perform with greater accuracy and safety, ultimately improving patient care and paving the way for the next generation of medical innovations. In the pursuit of precision medicine, the marker band remains a brilliantly simple yet profoundly critical beacon in the dark.
