Under the faint blue glow of the operating room, a catheter, less than 2 millimeters in diameter, navigates through blood vessels. The physician intently watches the monitor as a tiny metal ring at the catheter’s tip glows distinctly under X-ray—precisely marking the treatment site and guiding instruments to bypass critical areas. This tiny platinum-iridium marker bands serves as the “eyes” of modern interventional medicine.
Product Overview: A Life-Saving Navigator with Millimeter-Level Precision

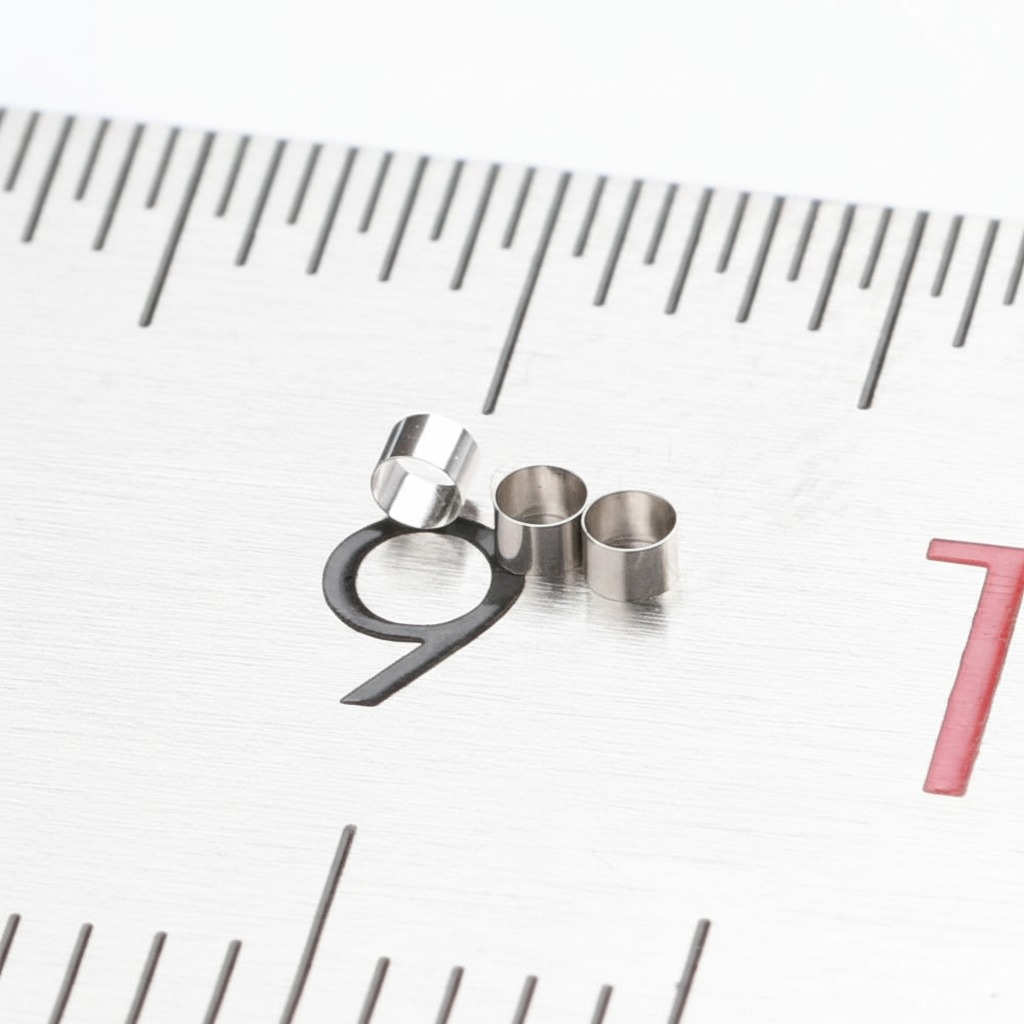

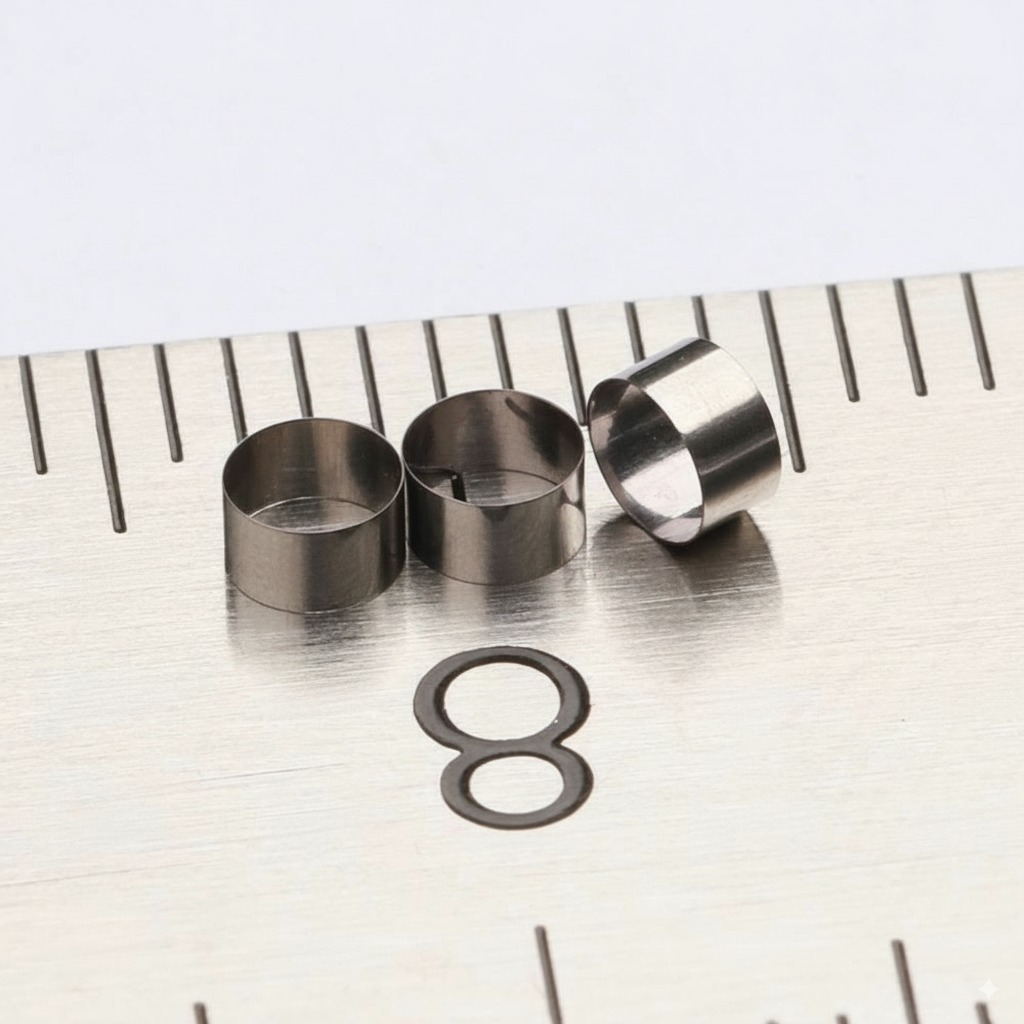

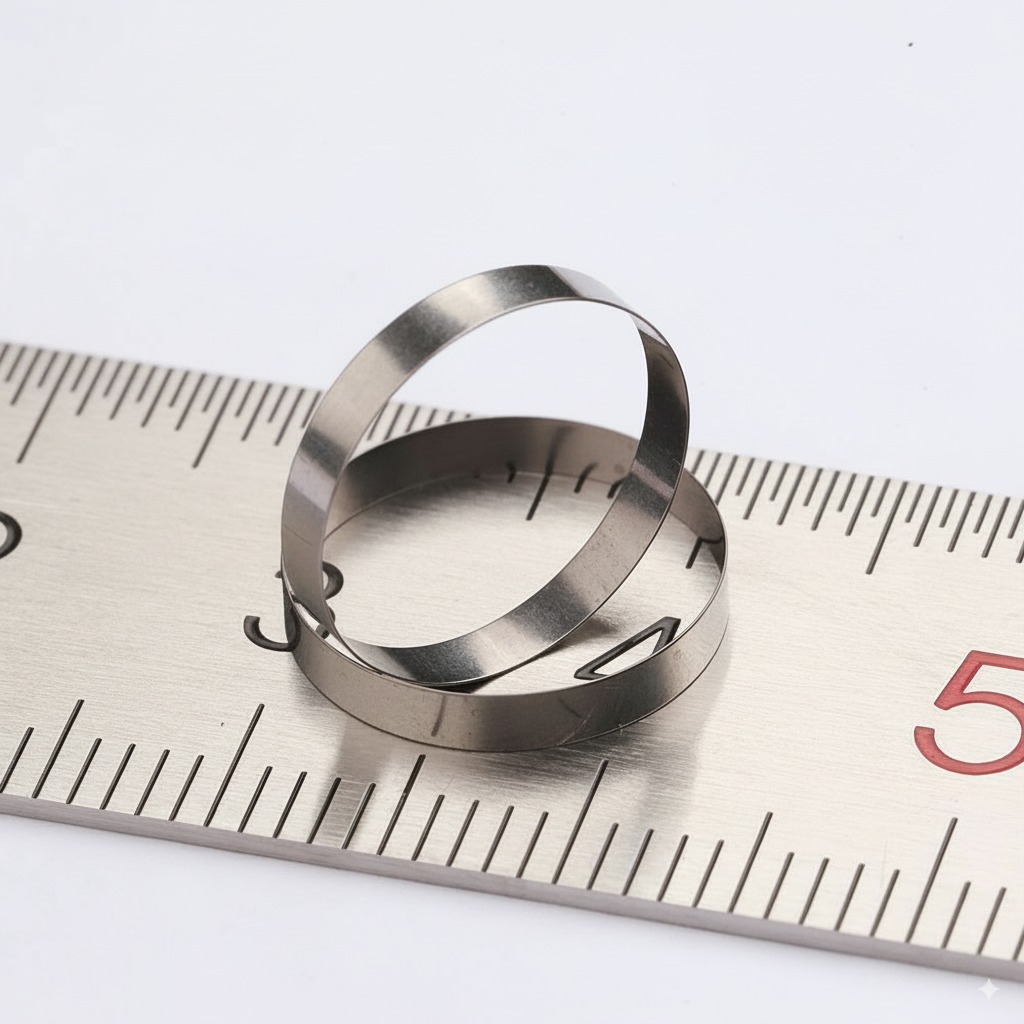

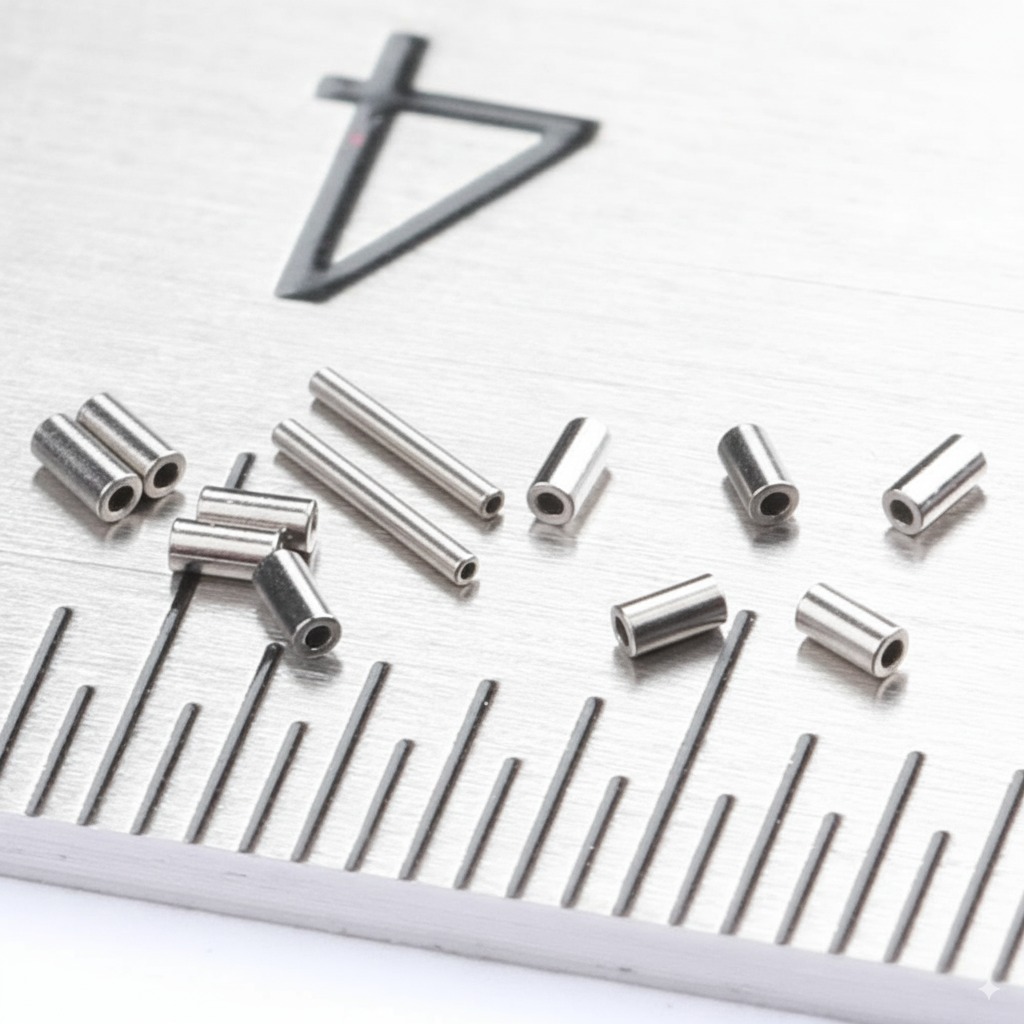

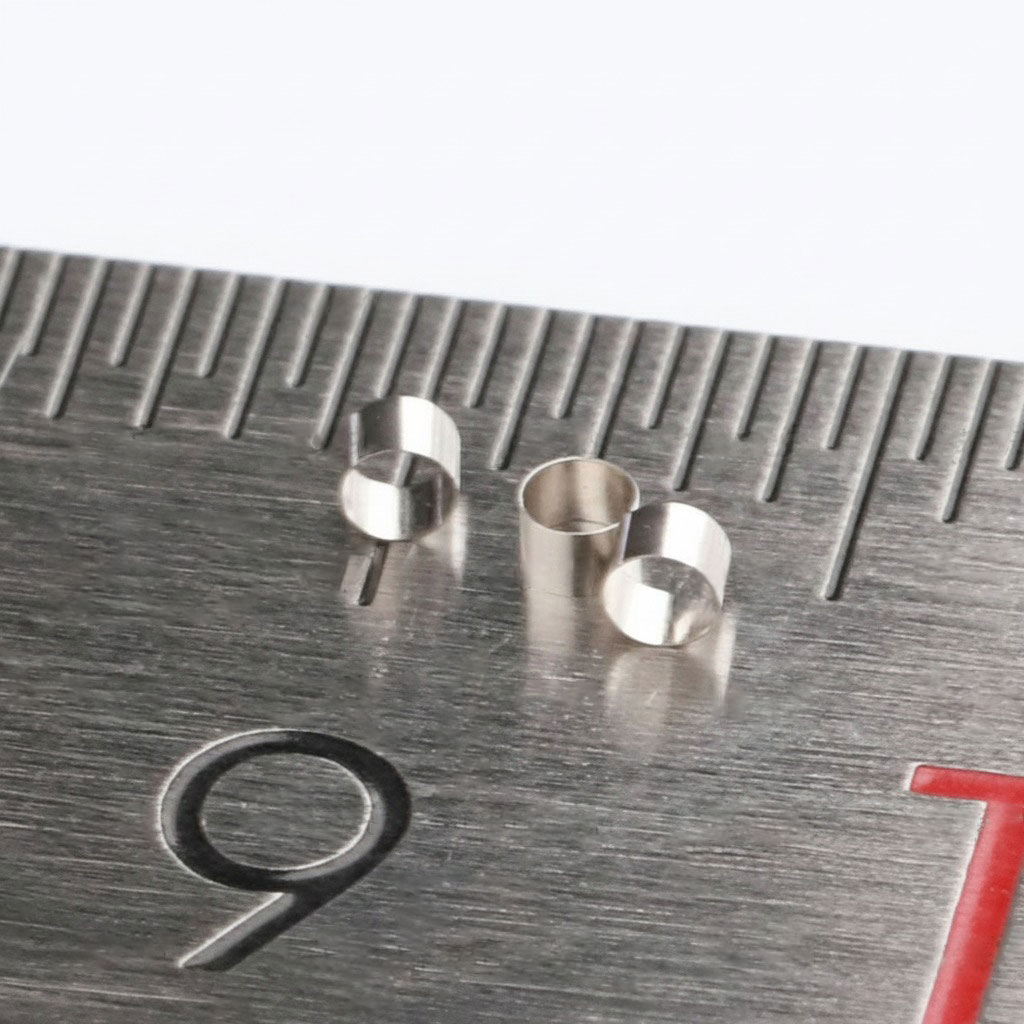

The platinum-iridium marker bands is an alloy positioning ring composed of two precious metals: platinum and iridium. A typical composition is 90% platinum and 10% iridium. During interventional procedures, it is attached to the tip of instruments like catheters and stents. By absorbing X-rays, it creates clear images, serving as a “navigation marker” for physicians navigating the intricate vascular maze.
The manufacturing of these markers is a micrometer-level art:
- Size requirements: Diameter typically ranges from 0.5 to 2 mm, with a wall thickness of only tens of micrometers.
- Surface standards: A mirror-grade finish is required on both inner and outer surfaces to prevent vascular damage.
- Plasticity requirements: It must be securely threaded onto flexible catheters without the risk of detachment.
ALB Materials Inc. has independently developed a “vacuum melting suction casting – laser precision cutting – ultrasonic polishing” process chain. This innovative approach overcomes the susceptibility to porosity and curling common in traditional manufacturing techniques. Furthermore, their innovative surface treatment using an argon-hydrogen plasma (Ar:H = 2:1) reduces the welding contact angle by 40%, significantly enhancing the bonding strength with guidewires.
Chemical and Physical Properties: The Perfect Union of Precious Metals
1. The Scientific Code of Alloy Design
The exceptional performance of the platinum-iridium marker bands stems from its unique physical and chemical properties:
- High Density: The high densities of platinum (21.45 g/cm³) and iridium (22.56 g/cm³) provide exceptional X-ray absorption, delivering significantly greater radiographic clarity than materials like tantalum.
- Biocompatibility: The alloy is highly resistant to corrosion in bodily fluids, ensuring it does not dissolve in blood environments.
- Mechanical Properties: The infusion of iridium increases the alloy’s hardness to over HV 150, preventing deformation during complex medical procedures.
2. Precise Microstructural Control
ALB Materials Inc. ensures material homogeneity through a meticulous three-process approach:
- Vacuum Melting and Suction Casting: Melting under a 10⁻⁴ Pa ultra-high vacuum and rapid cooling in water-chilled copper molds prevents compositional segregation.
- Homogenization Heat Treatment: A 1200°C argon-shielded annealing process eliminates internal stresses.
- Nanoscale Polishing: A 120-minute ultrasonic treatment with a diamond polishing slurry achieves a surface roughness of Ra ≤ 0.05μm.
Application Areas: The “Navigation System” for Minimally Invasive Surgery
1. Cardiovascular and Cerebrovascular Interventions
- Coronary Disease Treatment: The global market for cardiovascular devices is substantial, with projections indicating continued growth. In China, the number of Percutaneous Coronary Intervention (PCI) procedures has seen a significant increase, with over 1 million procedures performed annually in recent years.
- Neurointerventional Applications: Cerebral thrombectomy stents equipped with 3-5 marker bands enable millimeter-level positioning, crucial for delicate brain procedures.
2. Precision Tumor Intervention
- Hepatocellular Carcinoma Embolization: Catheters release embolization agents directly within tumor vessels, with marker bands ensuring precise drug delivery to the targeted area.
- Prostate Seed Implantation: These markers allow for the real-time tracking of radioactive seed locations during brachytherapy.
3. Multifunctional Device Integration
ALB Materials Inc.’s innovative multilayer composite marker bands are being applied in:
- Smart catheter systems: Integrating temperature and pressure sensors for enhanced monitoring.
- Biodegradable stents: Serving their positioning function before gradually and safely degrading.
Operation and Storage: The Final Line of Defense for Patient Safety
Key Risk Control Points
| Risk Type | Control Measures | Inspection Standard |
|---|---|---|
| Dimensional Deviation | 100% optical inspection after laser cutting | Diameter tolerance ±0.005mm |
| Surface Contaminants | Purified water cleaning + vacuum drying | Particle residue <5 particles/cm² |
| Welding Failure | Plasma surface activation treatment | Weld tensile strength ≥15N |
Clinical Use Warning:
It is prohibited to resterilize these components. High temperatures can cause grain coarsening in the alloy, leading to the formation of microcracks and compromising the device’s integrity.
Development Prospects
1. Market Growth
- Global Demand: The demand for platinum-iridium marker bands is closely tied to the expanding interventional device market.
- Price Trend: The price of iridium has been subject to significant volatility, influenced by supply constraints from major producers like South Africa. Observers are closely watching market trends.
2. ALB Materials Inc.’s Innovation Strategy
The company is building a three-dimensional strategy encompassing “materials-equipment-data”:
- Intelligent Quality Inspection System: The company has filed 3 invention patents related to platinum-iridium marker bands, with 2 having been granted.
- Recycling Technology Breakthrough: A greater than 95% recovery rate for platinum-iridium-containing medical waste has been achieved, leading to a 40% cost reduction.
- Production Line Upgrade: Plans are in place to establish a fully automated production line, aiming to increase capacity to 10 million units per year.
3. Competition for Technological High Ground
- Micro-tube Drawing Technology: Mandrel-assisted drawing achieves wall thickness control down to 0.05mm with a tolerance of ±0.002mm.
- Femtosecond Laser Cutting: This technology results in a heat-affected zone of less than 1μm, eliminating the carbonization issues associated with traditional cutting methods.
- Surface Nanocoating: A novel antibacterial ruthenium coating has been developed to reduce the risk of postoperative infections.
As you read this, thousands of interventional procedures are underway globally, each relying on these microscopic platinum-iridium marker bands to guide life-saving pathways. These “Platinum Eyes” are reshaping the future landscape of medical technology.
We welcome your insights:
- Have you experienced the performance of platinum-iridium marker bands in your medical practice?
- What do you believe are the most critical technological bottlenecks requiring breakthroughs in future interventional medical devices?
- What innovative ideas do you have for the recycling of high-value medical consumables?
ALB Materials Inc. offers medical-grade platinum-iridium marker bands such as Pt90Ir10 and Pt80Ir20, as well as customized solutions to meet the specific needs of medical device manufacturers with high-quality and effective visualization solutions.
On the front lines of humanity’s battle against disease, these tiny metal rings are not only technological marvels but also beacons of life—each precise positioning redefines the trajectory of existence.
