Understanding Marker Band Materials: Platinum, Gold, and Tantalum

Introduction to Marker Bands in Medical Applications

What Are Marker Bands and Why Are They Critical?

Marker bands are tiny radiopaque rings (typically 0.2-8mm diameter) made from precious metals that serve as visual guides during minimally invasive medical procedures. These microscopic components, often smaller than a grain of rice, enable physicians to precisely track catheter tips, stent positions, and guidewire locations under fluoroscopic imaging.

The global marker band market supports critical applications across cardiology, neurology, orthopedics, and oncology, where millimeter-level precision can mean the difference between procedural success and catastrophic complications.

The Science Behind Radiopacity and Imaging Visibility

Radiopacity depends on a material’s atomic number and density – higher values create stronger X-ray attenuation and clearer imaging contrast. The relationship follows these principles:

The relationship between material thickness and imaging clarity follows exponential attenuation principles, where doubling wall thickness from 0.05mm to 0.1mm can increase visibility by 40-60% depending on the specific material and imaging parameters used in the procedure.

Manufacturing Precision: Micron-Level Tolerances

Modern marker band manufacturing employs advanced micro-machining technologies capable of achieving tolerances as tight as ±0.003mm in diameter and ±0.05mm in length. The production process includes:

• Precision tube drawing of precious metals
• Laser cutting or micro-machining to create burr-free edges
• Quality control measures including surface finish measurements (Ra 0.1 μm or better)
• Dimensional verification using coordinate measuring machines
• Biocompatibility testing per ISO 10993 standards

Platinum and Platinum-Iridium Marker Bands

Platinum: The Gold Standard in Radiopacity

Platinum represents the premium choice for marker band applications requiring maximum visibility and long-term reliability. With an atomic number of 78 and density of 21.45 g/cm³, platinum provides superior X-ray attenuation that creates exceptional imaging contrast even in challenging imaging conditions.

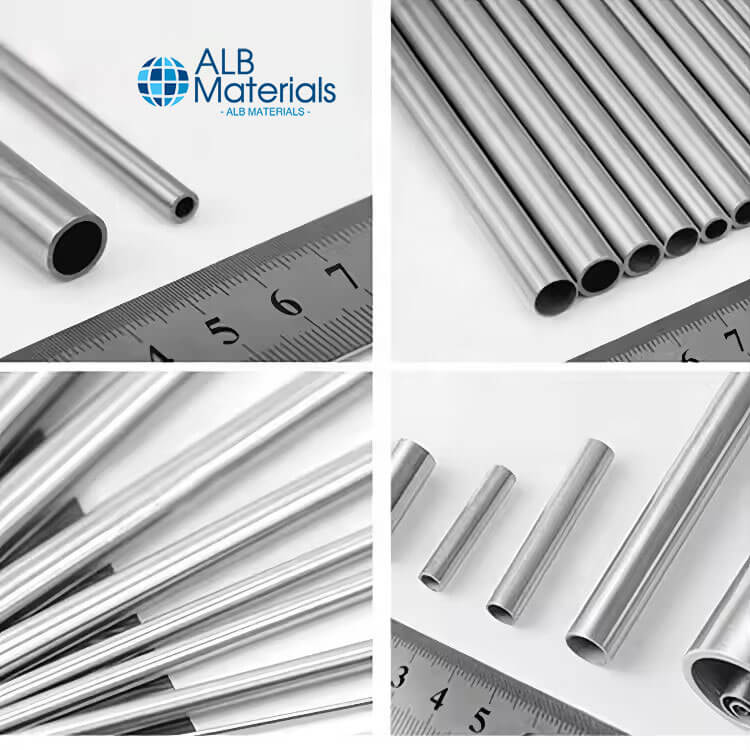

Platinum-iridium alloys (typically 90/10 composition) enhance mechanical properties while maintaining excellent radiopacity. These materials demonstrate outstanding biocompatibility with decades of safe implantation history. Clinical applications span high-end cardiovascular procedures, neurovascular interventions, and permanent implants where failure is not acceptable.

Advantages and Performance Characteristics

Platinum marker bands offer unmatched performance in critical applications:

• Superior radiopacity provides 10-15% better imaging visibility compared to gold alternatives
• Exceptional chemical stability ensures no degradation or ion release over decades of implantation
• High ductility allows for secure crimping and swaging attachment methods
• Proven biocompatibility with over 50 years of clinical use and minimal adverse reaction rates
• Superior corrosion resistance in bodily fluids exceeds that of other marker materials

Cost Considerations and Economic Analysis

Platinum marker bands command premium pricing due to material costs and specialized manufacturing requirements. Raw platinum prices fluctuate around $35-50 per gram, with a typical marker band containing 0.1-0.5 grams depending on size.

Gold Marker Bands: The Balanced Choice

Gold Properties and Medical Applications

Gold marker bands offer an optimal balance of performance, biocompatibility, and cost-effectiveness for many medical applications. With atomic number 79 and density 19.3 g/cm³, gold provides excellent radiopacity second only to platinum.

Pure gold (99.95%+) demonstrates exceptional biocompatibility with centuries of safe use in medical applications. The material’s softness (Vickers hardness 216 MPa) enables easy manufacturing and forming but may limit applications requiring high mechanical strength.

Manufacturing and Quality Specifications

Gold marker band manufacturing utilizes both pure gold and gold alloys (18K, 24K) depending on application requirements:

• Standard specifications: Outer diameters from 0.15-8mm, wall thicknesses from 0.015-0.5mm
• Manufacturing processes: Precision tube drawing, laser cutting, and edge finishing
• Quality control: Dimensional accuracy (typically ±0.01mm tolerances), surface finish requirements (Ra 0.1 μm or better)
• Biocompatibility testing: Per ISO 10993 standards

Performance vs. Cost Analysis

Gold marker bands typically cost 40-60% less than platinum alternatives while providing 85-90% of the radiopacity performance. This cost-performance ratio makes gold attractive for high-volume applications where premium platinum performance isn’t required.

Tantalum: The Practical Alternative

Tantalum Properties and Unique Advantages

Tantalum represents a compelling alternative to precious metals, offering excellent performance at significantly lower cost. With atomic number 73 and density 16.69 g/cm³, tantalum provides good radiopacity suitable for most cardiovascular and peripheral interventions.

The material’s outstanding biocompatibility stems from its ability to form a stable, self-healing oxide layer that prevents corrosion and ion release. Tantalum demonstrates exceptional compatibility with bone and soft tissue, making it suitable for long-term implants.

Manufacturing Challenges and Solutions

Tantalum’s hardness and work hardening characteristics present unique manufacturing challenges. However, specialized processing techniques have overcome these difficulties:

• Precision grinding and laser cutting for micron-level tolerances
• Electrical discharge machining for complex geometries
• Proprietary processing technologies developed by leading manufacturers
• Quality control measures per ASTM F560 standards

Cost-Benefit Analysis and Market Position

Tantalum marker bands typically cost 50-70% less than platinum alternatives while providing 80-85% of the radiopacity performance. This cost advantage makes tantalum attractive for high-volume applications and cost-sensitive markets.

Comparative Analysis and Selection Guidelines

Performance Comparison Matrix

A comprehensive comparison reveals distinct advantages for each material in specific applications:

Application-Specific Selection Guidelines

Future Trends and Emerging Technologies

The marker band industry continues evolving with advances in manufacturing technology and new material developments:

• Polymer-based marker bands loaded with radiopaque fillers for cost reduction
• Additive manufacturing enabling complex geometries
• Smart marker bands incorporating sensors or drug delivery capabilities
• Miniaturization trends demanding ever-smaller marker bands with maintained visibility

Conclusion and Selection Guidelines

Understanding marker band materials requires balancing performance requirements, cost considerations, and application-specific demands:

The optimal choice depends on specific procedural requirements, device lifetime expectations, and economic constraints. As medical technology advances, material selection will continue evolving to meet increasingly demanding performance and cost objectives while maintaining the highest standards of patient safety and procedural success.
